130W Flexible Solar Mono Photovoltaic panel

130W Powerfully Flexible

19.2% Maximum Efficiency

360℃ Bendable

  • item no.:

    130W Flexible
  • price range:

    >101 PCS/US $55
  • price range:

    11 - 100 PCS/US $58
  • price range:

    1 - 10 PCS/US $60
  • product origin:

    China
  • Color:

    Black
  • Lead Time:

    15 days
  • Sample:

    Not free
inquiry now
Product Details

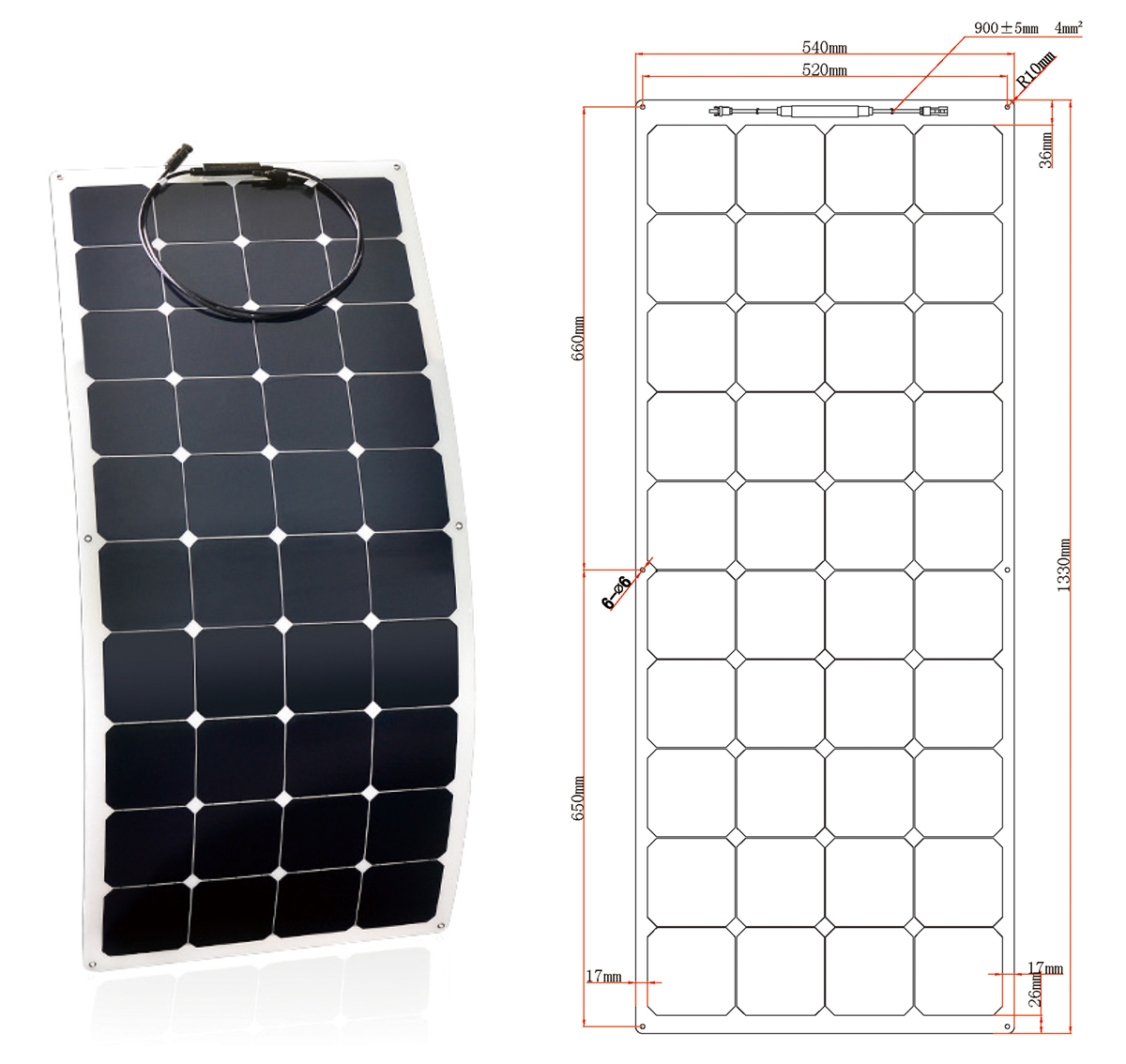

130W Flexible Solar Mono Photovoltaic Panel


 Solar Panel Details:

Electrical Characteristics
Product code FL-130W/22V
Maximum power(Pmax) 130W
Voltage at Pmax(Vmp) 22.3
Current at Pmax(Imp) 5.83
Open-circuit voltage(Voc) 26.3
Short -circuit current(Isc) 6.18
Power temperature coefficient -0.38%/ºC
Voltage temperature coefficient -0.27%/ºC
Cirrent temperature coefficient +0.05%/ºC
Cells Efficiency(%) 23.70%
The maximum system voltage 45VDC(IEC)
Output power tolerance ±3%
Cells USA A grade solar cell
No.of cells and connections Module dimension 36(4X9)
Weight 1200*540*3mm
Certification 2.34KG CE,RoHS,ISO



Quality assurance:
1,All the solar cells A grade from Taiwan (Sunpower from USA)
2,TPT+EVA+PET
3,Warranty:3-5 years
4,Useing Life: 10-20 years
5,CE  ROHS Certificates

Our Services:

Samples and OEM, Warranty and After-Sale Service:

Sample can be provided for quality testing

  •  OEM Welcomed
  •  Warranty:5 years for solar panel, 2 years for controller/inverter/battery.
  •  After-Sale Service: 24 Hour-Hot Line for Consultancy and Technical Support
