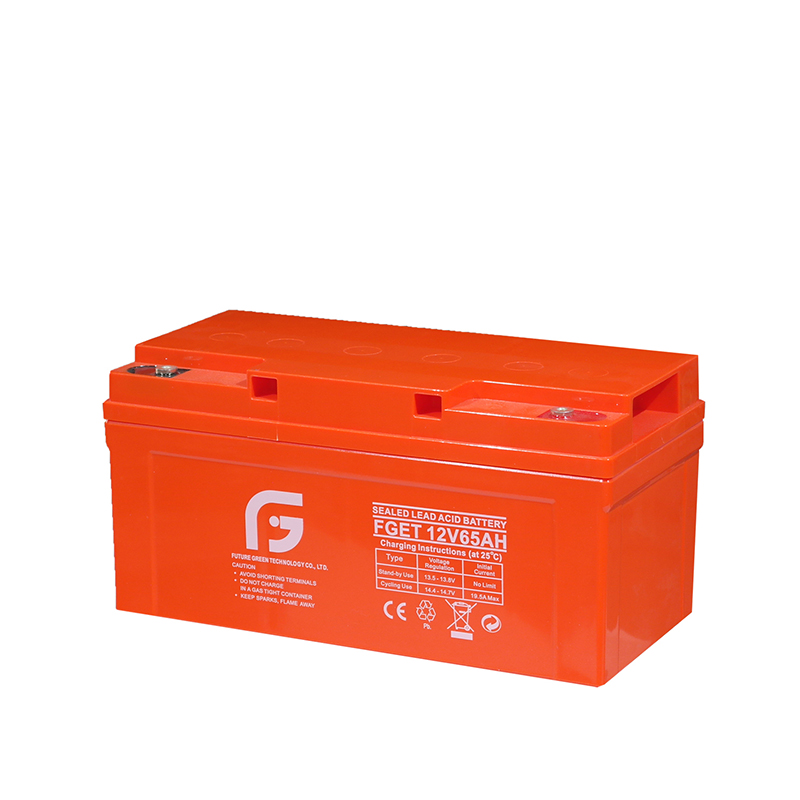

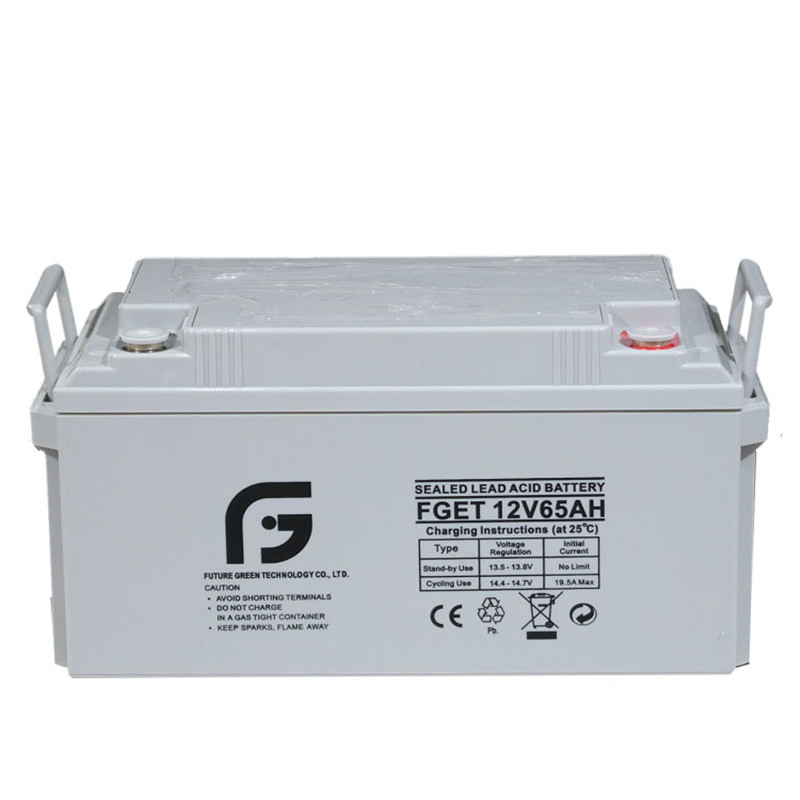

12V 65AH Rechargeable Deep Cycle Solar Power Gel Battery gel battery 12V65ah

12V 65AH Rechargeable Deep Cycle Solar Power Gel Battery gel battery 12V65ah

The FGET gel battery shows some distinctive advantages, such as super thermal stability, high deep discharge capability, good recovery from deep discharge , even if the battery is left discharged for three days, it will recover to 100% of capacity.

  • Item NO:DG12V65AH
  • Color:Grey Black Blue also accept customized
  • PriceRange:1001~999999/$62.55
  • PriceRange:101~1000/$65
  • PriceRange:1~100/$67
  • Min order:1
  • Payment:T/T, L/C
  • Lead Time:about 15 days after receiving deposit
  • Sample:available









Application:

  • Solar and wind systems
  • Cable TV
  • Telecommunications
  • Wheelchair
  • Marine Equipment
  • Military Equipment
  • Emergency lighting
  • Power Plants
  • Medical Devices
  • Golf Cart
  •

Battery Use and Maintenance:

1) Please use constant-voltage charge.
2) In floating charge, the voltage is 2.23 to 2.27 per unit cell.
3) In cycle use, the voltage is 2.35 to 2.45 per unit cell, the max. Current is no more than 25%° C
4) Please do tighten the bolts to avoid sparkle and poor contact when the battery is in use.
5) Please do not use it near the heat source and open flame.

6) Please keep it at low temperature. Please change it while there is liquid leaking or damage.

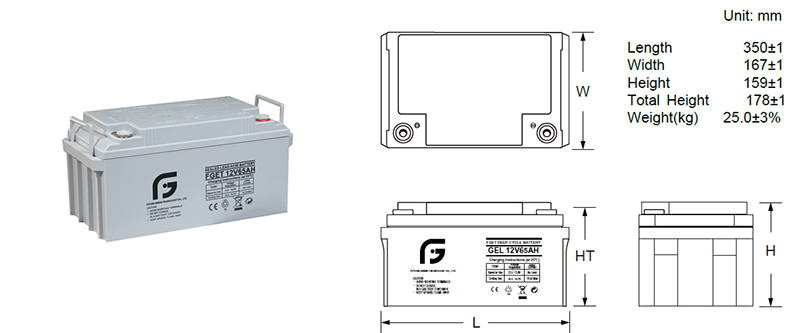

Battery Out Size:




Battery Parameters:



Capacity
25'C (77'C)

10 hour rate(15.0A )

65AH

3 hour rate(37.5A )

63AH

1 hour rate(82.5A  )

38.7AH

Internal Resistance

Full charged Battery at 25  'C(77'F  )

≤9mΩ

Capacity affected by Temp

40'C (104F)

102%

25'C (77'F)

100%

0'C (32'F)

85%

(-15'C )5'F

65%

Self-Discharge
25'C (77'F)

Capacity after 3 month storage

90%

Capacity after 6 month storage

80%

Capacity after 12 month storage

62%

Charge
(Constant Voltage)

Initial Charging Current less than 26 A

Voltage 14.4-15.0V

Voltage 13.5-13.8V



Gel Battery Series:


Model

Voltage

Capacity
C20

Dimension & Weight

Approx .weight

Download

Length

Width

Height

Totl height

(V)

(h)

mm

mm

mm

mm

Kg

GE12V33Ah

12

33

195

130

159

180

9.50

GE12V40Ah

12

40

197

165

175

182

13.00

GE12V65Ah

12

60

260

168

211

233

20.00

GE12V75Ah

12

70

260

168

211

233

23.50

GE12V100Ah

12

100

331

171

214

224

30.00

GE12V120Ah

12

120

407

174

225

238

33.50

GE12V150Ah

12

150

483

170

241

241

44.00

GE12V200Ah

12

200

522

240

219

244

57.00

GE12V250Ah

12

250

520

268

220

249

67.00

GE12V55Ah-F

12

55

277

106

222

222

16.50

GE12V80Ah-F

12

80

564

115

189

189

25.50

GE12V100Ah-F

12

100

395

110

285

285

30.00

GE12V150Ah-F

12

150

551

110

287

287

48.00

GE12V180Ah-F

12

180

546

125

317

323

53.00







Work Shop

 View More



Main Workshop

FGET, it is highly resistant to battery acid, oxidation and heat, and can maintain its shape and strength after prolonged exposure to sever environmental conditions. Customized specifications are available.

Battery Charging

In the fully charged state, the negative plate consists of lead, and the positive plate lead dioxide, with the electrolyte of concentrated sulfuric acid.

Produce line

FGET have 3 produce lines for AGM battery from 2V to 12V, GEL battery and OPzV battery.



Packing & Delivery

 View More

Carton Packing

20, 10 or 4 pieces in one carton for batteries smaller than 12V24AHone in one carton for larger batteries.

Batteries Layer

Load Lead acid batteries 3-5 layers high with cardboard between each layer, and stretch wrap. Make sure to catch the top of the pallet to help anchor it.

Fumigation Free Tray

As Lead Acid batteries are very heavy, we all use fumigation free tray to transport them.

Our Certification



 View More

Company Certificate

Commitment to quality, consistency, innovation and service is taking the Company through a steady growth in the competitive market.

ISO Certificate

 SGS ISO9001 quality management system certificate, ISO14001 environment system certificate



MSDS & Transport

Our batteries have UL and CE approvals. MSDS and Report for Safe Transport of Goods.



Our Services:

Samples and OEM, Warranty and After-Sale Service:

Sample can be provided for quality testing

  •  OEM Welcomed
  •  Warranty: 2 Year
  •  After-Sale Service: 24 Hour-Hot Line for Consultacncy and Technical Support
  •
