China Manufacturer BIFACIAL Half Cut 120 Cells 470W 475W 480W 485W 490W Solar Mono Panels

Adopting 182MM Multi Gate (MBB) Monocrystalline Half Cut N-Type Cells Technology For High Power Solar Cells, Higher Component Power Effectively Reduces System BOS Costs

  •  Item No: MSD490M
  •  Cells Number: 120 Pcs
  •  Min Order: 36 PCS
  •  Voltage: 36.06V
  •  Module Efficiency(%): 22.62%

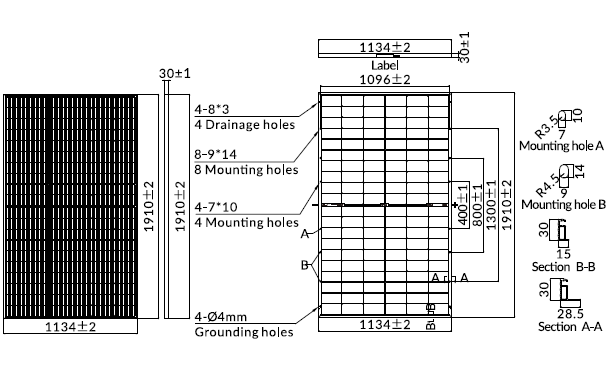

  •  Dimemsions: 1909*1134*35MM
  •  Weight: 23.9KG
  •  Packing Number: 36Pcs/Pallet
  •  Packing Volume: 2.834CBM/Pallet
  •  40'HQ Container: 864PCS
Get A Quote WhatsApp
China Manufacturer BIFACIAL Half Cut 120 Cells 470W 475W 480W 485W 490W Solar Mono Panels
Advantages:
1. 120 Monocrystalline Half-Cut N-Type Cells 182 x 91 MM, Higher Efficiency
2. Customizable All Black Design, Nice Appearance, Reduce Light Pollution
3. Junction Box Certified According To IEC 62790, IP 68 Approved, 3 Bypass Diodes
4. Glass High Transmission, Low Iron, Tempered, ARC, Transparent
5. Solar Cells: Mono
6. No.Of Cells: 120(6x20)
7. Mechanical Load Test: 5400Pa
8. Front/back Glass: 2.0 mm coated tempered glass
9. Frame: Anodized Aluminium Alloy
10. Junction Box: Ip68 Rated (3 By Pass Diodes)
11. Output Cables: 4.0MM 2, 300MM (+) / 400MM (-), Length Can Be Customized.
12. Connectors: Mc4 Compatible

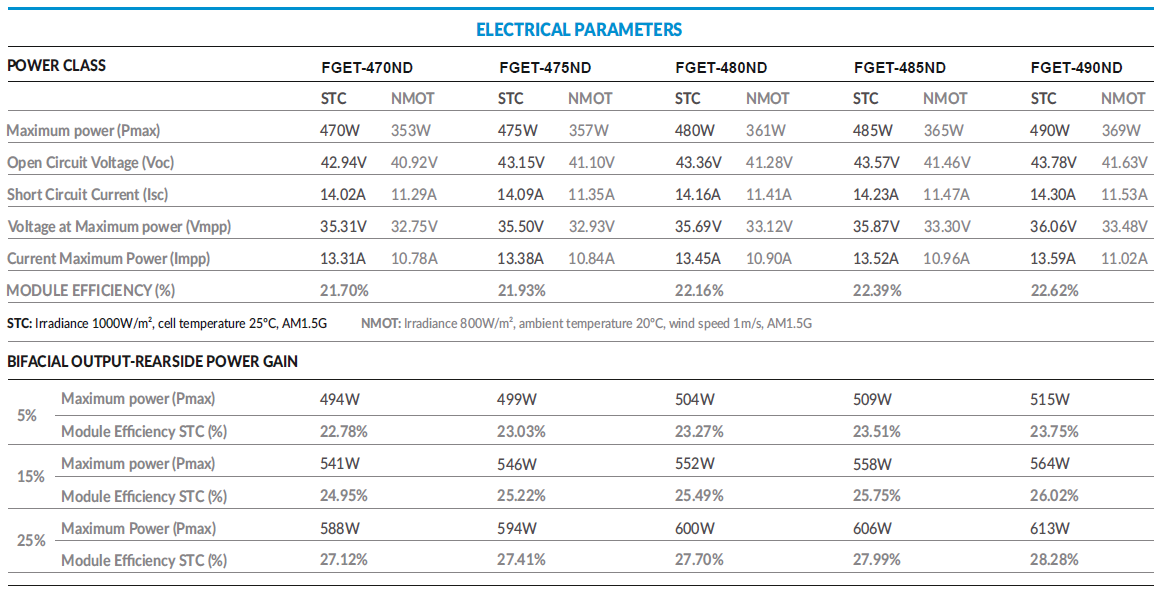

POWER CLASS FGT-470ND FGT-475ND FGT-480ND FGT-485ND FGT-490ND
　 STC STC STC STC STC
Maximum power (Pmax) 470W 475W 480W 485W 490W
Open Circuit Voltage (Voc) 42.94V 43.15V 43.36V 43.57V 43.78V
Short Circuit Current (Isc) 14.02A 14.09A 14.16A 14.23A 14.30A
Voltage at Maximum power (Vmpp) 35.31V 35.50V 35.69V 35.87V 36.06V
Current Maximum Power (Impp) 13.31A 13.38A 13.45A 13.52A 13.59A
MODULE EFFICIENCY (%) 21.70% 21.93% 22.16% 22.39% 22.62%
STC: Irradiance 1000W/m², cell temperature 25ºC, AM1.5G
BIFACIAL OUTPUT-REARSIDE POWER GAIN

5%		 Maximum power (Pmax) 494W 499W 504W 509W 515W
Module Efficiency STC (%) 22.78% 23.03% 23.27% 23.51% 23.75%
15% Maximum power (Pmax) 541W 546W 552W 558W 564W
Module Efficiency STC (%) 24.95% 25.22% 25.49% 25.75% 26.02%
25% Maximum Power (Pmax) 588W 594W 600W 606W 613W
Module Efficiency STC (%) 27.12% 27.41% 27.70% 27.99% 28.28%
China Manufacturer Half Cut 120 Cells 400W 430W 440W 455W Solar Mono Panels


Full Pine-Sol All Black Frame 500watt 500 550W 600W 600 700 W 1000W Solar Monocrystalline Photovoltaic Panels
Full Pine-Sol All Black Frame 500watt 500 550W 600W 600 700 W 1000W Solar Monocrystalline Photovoltaic Panels
Full Pine-Sol All Black Frame 500watt 500 550W 600W 600 700 W 1000W Solar Monocrystalline Photovoltaic Panels
good quality solar panels
Packaging process:
Solar Panel Corner Protection→Independent Cardboard Box Packaging→Pallet→Wooden Box→PET Plastic Steel Packaging Belt→PE Winding Film
Full Pine-Sol All Black Frame 500watt 500 550W 600W 600 700 W 1000W Solar Monocrystalline Photovoltaic Panels

Product Size: 1909*1134*30mm

Package: 36pcs/Pallet: 24Pallets/40HQ

About FGET



Future Green Techonology is committed to creating a green future.

Rooting ourselves in the new energy industry for decade, we manufacturehigh quality solar panel and battery and win high reputation from hundredscustomers globally.

We also have over 100 long-term partners around the world. We sell high-quality batteries and solar panels, and also customize solar panel systems and solar power stations for our customers who need them. If you also want to customize a solar panel system, you can submit your daily electricity consumption requirements below, and we will immediately develop a detailed energy solution for you.

Support Factory About Future Green



Q1: How to choose the right Panel?
A1: Tell us your demand, then our sales will recommend a suitable panel for you.


Q2: What's the difference between Mono and Poly panels?
A2: Monocrystalline solar panels have the highest efficiency rates since they are made out of the highest-grade silicon. The process used to make polycrystalline silicon is simpler and costs less. The amount of waste silicon is less compared to monocrystalline.

Q3: How about the delivery time?
A3: 7 days for sample; 15 days for bulk order.

Q4: What is the warranty for solar panels?
A4: 5 years warranty on FGET-Solar product.

Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem solve easily.
