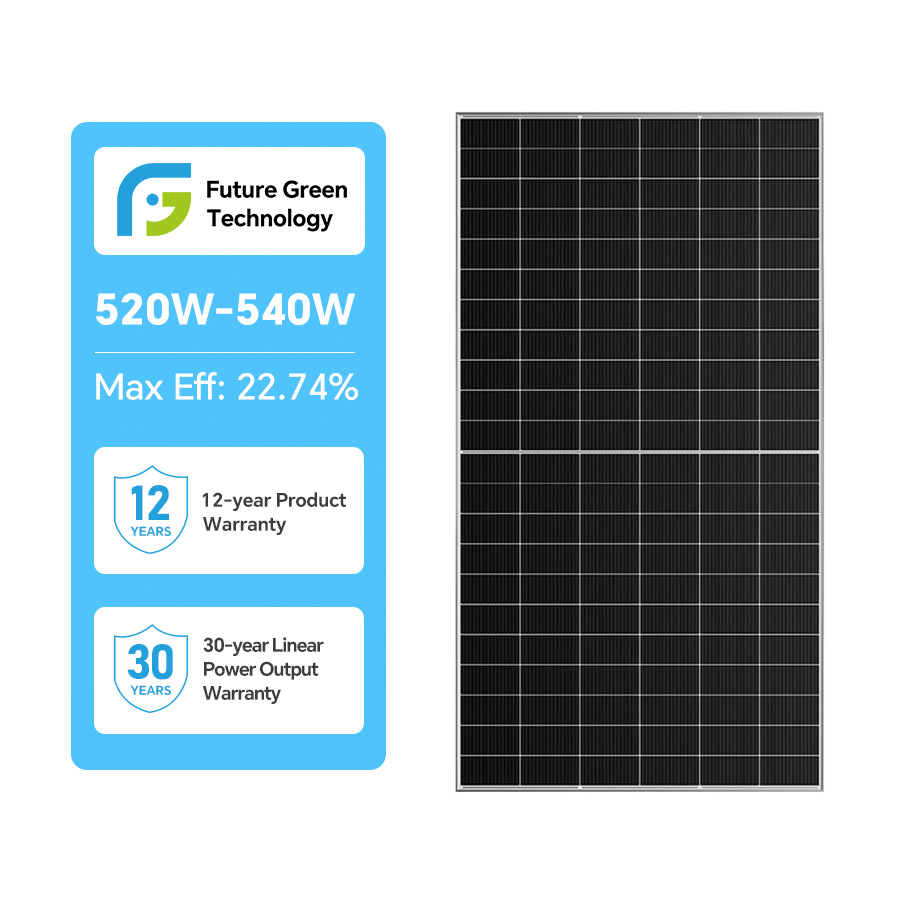

2026 Factory N-Type Half Cut Cells 520W 525W 530W 535W 540W Solar Mono Panels

2026 Factory N-Type Half Cut Cells 520W 525W 530W 535W 540W Solar Mono Panels

Adopting 182MM Multi Gate (MBB) Monocrystalline Half Cut N-Type Cells Technology For High Power Solar Cells, Higher Component Power Effectively Reduces System BOS Costs

  •  Item No: FG530M
  •  Color: Black
  •  Min Order: 36 PCS
  •  Voltage:43V
  •  Module Efficiency(%): 22.84%
  •  Dimemsions: 2094 x 1134 x 30mm
  •  Weight: 25.3KG
  •  Packing Number: 36Pcs/Pallet
  •  Packing Volume: 3.372CBM/Pallet
  •  40'HQ Container: 792PCS



2026 Factory N-Type Half Cut Cells Solar Panels

High-efficiency monocrystalline solar panels with N-Type half-cut cells technology for superior performance

520W 525W 530W 535W 540W

KEY ADVANTAGES

1

Higher Efficiency

132 monocrystalline half-cut N-Type cells 182 x 91 mm, delivering superior energy output

2

All Black Design

Premium appearance with reduced light pollution

3

Certified Quality

Junction box certified according to IEC 62790, IP68 approved with 3 bypass diodes

TECHNICAL SPECIFICATIONS

Solar Cells
Monocrystalline N-Type
Number of Cells
132 (6x22)
Mechanical Load Test
5400Pa
Front/Back Glass
2.0 mm coated tempered glass
Frame
Anodized aluminium alloy
Junction Box
IP68 rated (3 bypass diodes)
Output Cables
4.0mm², length customizable
Connectors
MC4 Compatible

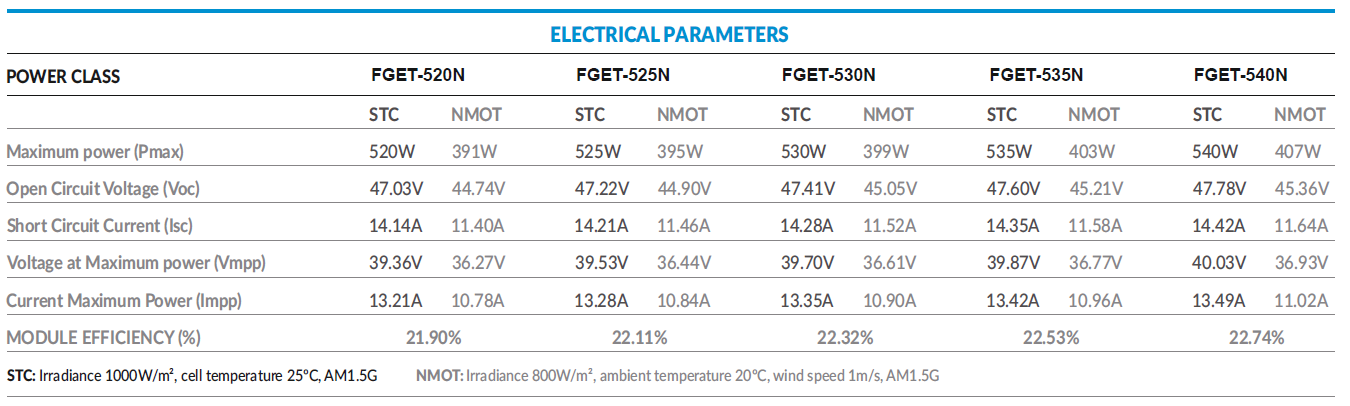

ELECTRICAL PARAMETERS

STC: Irradiance 1000W/m², cell temperature 25°C, AM1.5G

PARAMETER FGET-520ND FGET-525ND FGET-530ND FGET-535ND FGET-540ND
Maximum power (Pmax) 520W 525W 530W 535W 540W
Open Circuit Voltage (Voc) 47.08V 47.24V 47.41V 47.56V 47.72V
Short Circuit Current (Isc) 14.12A 14.19A 14.26A 14.33A 14.40A
Voltage at Pmax (Vmpp) 38.78V 38.95V 39.11V 39.28V 39.44V
Current at Pmax (Impp) 13.41A 13.48A 13.55A 13.62A 13.69A
Module Efficiency 21.90% 22.11% 22.32% 22.53% 22.74%

BIFACIAL OUTPUT - REARSIDE POWER GAIN

GAIN PARAMETER FGET-520ND FGET-525ND FGET-530ND FGET-535ND FGET-540ND
5% Maximum power (Pmax) 546W 551W 557W 562W 567W
Module Efficiency STC (%) 22.99% 23.21% 23.44% 23.66% 23.88%
15% Maximum power (Pmax) 598W 604W 610W 615W 621W
Module Efficiency STC (%) 25.18% 25.43% 25.67% 25.91% 26.15%
25% Maximum Power (Pmax) 650W 656W 663W 669W 675W
Module Efficiency STC (%) 27.37% 27.64% 27.90% 28.16% 28.43%

FAQ


Q37:
The products have some problems.
A37:
We are sorry to hear that. Would you pls show us some pictures or videos? I'll let our engineers check, and we will give you a satisfactory reply.
Q38:
How can I make sure the mass goods quality?
A38:
You are really a professional buyer, we will arrange the first quality inspection when the goods are 30% complete, the second quality inspection when the goods are 70% complete, and the last inspection after the Mass goods done. We will update the photos and videos for you each quality inspection then you will know your Goods status and progress.
Q39:
Do you have warranty?
A39:
5 years for solar panel, 2 years for controller/inverter/battery. More year for option.
Q40:
How about the quality of your products?
A40:
You can rest assured about the quality. Reliability is our strong point. We have cooperation with Huawei. Our products are using environmental & friendly materials. Pass a full set of safety certification.
Q41:
Is it possible to return or exchange the goods?
A41:
Hello, we will arrange personnel to inspect all the goods before shipment. We have spot checks for functional products in the middle of production, and we will carry out a second spot check when warehousing. If there is no problem with the product quality, we will arrange shipment. If there is any problem, we will not ship it. However, if the arriving customer finds a quality problem with the product, we will cooperate with them to deal with it, but we cannot return it.

Product Components & Features

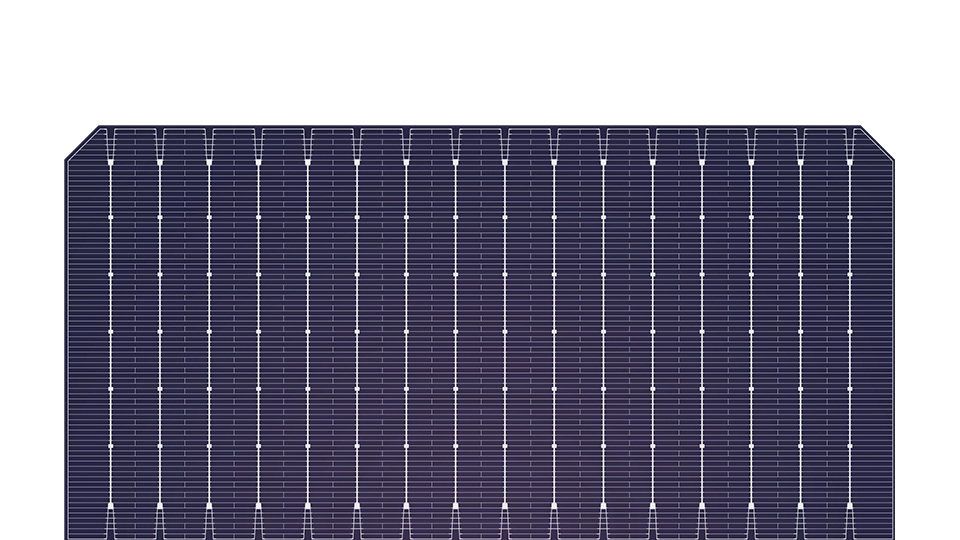

M10 16bb solar cell
☀️

Solar Cell

  • High efficiency MBB PV cell
  • Uniform color
  • Anti-PID technology
  • Germany standard cell quality
  • Full performance testing
Bifacial Solar Cell
👤

Bifacial Solar Cell

  • Significant power generation gain: Total power generation can be increased by 15%~30% within the same area.
  • Excellent low-light/diffuse light performance
  • Suitable for multiple scenarios: Can be installed vertically

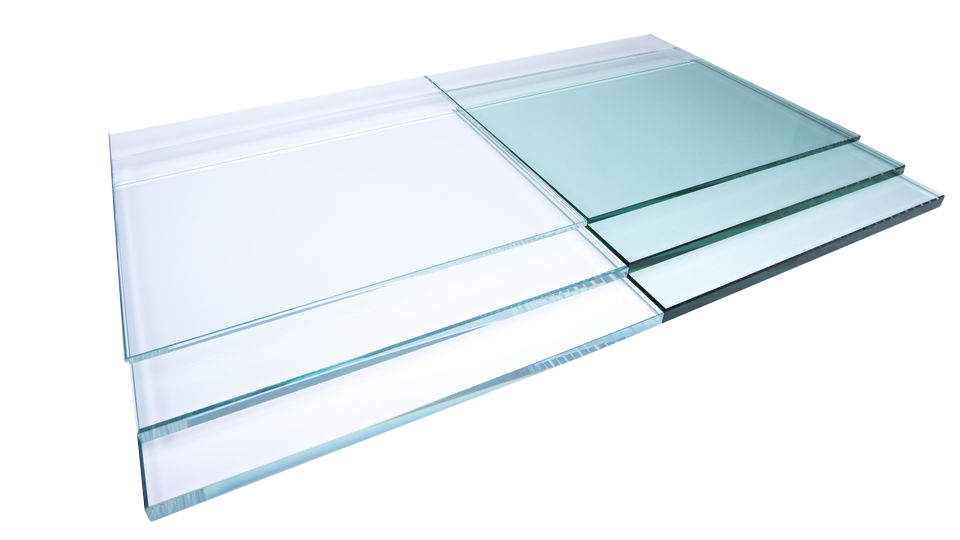

Glass
🔍

Front Glass

  • True, clear, low-iron glass
  • Translucency increased by 2%
  • Module efficiency increased by 2%
  • Self-clean function
  • 25 years service life

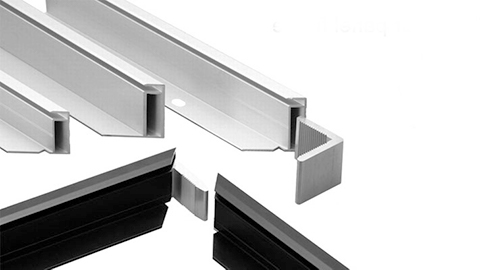

Frame
🏗️

Frame

  • Stock-size availability
  • Silvery and black options
  • Thickness: 30-150mm range
  • Humanized design
  • Stress tested for durability

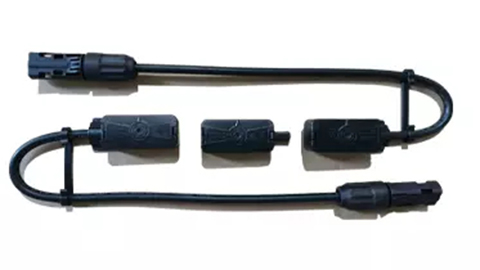

Junction Box
🔌

Junction Box

  • Conventional & custom editions
  • Quality diode for safe operation
  • IP67 protection level
  • Efficient heat dissipation
  • Reliable electrical connection
Back Sheet
🛡️

Back Glass Special

  • Double-glazed structure: Excellent moisture barrier properties effectively resist damp heat and ultraviolet radiation, significantly reducing cell corrosion and degradation.
  • Excellent weather resistance: Impact-resistant and corrosion-resistant, suitable for harsh environments such as coastal areas, high humidity, acid rain, and deserts.
  • Better heat dissipation: The high heat capacity of the glass helps reduce module operating temperature and power loss.

good quality solar panels



Damage-Free Delivery Guaranteed: Our Robust Packaging Process

We invest in superior packaging so you don't have to worry about shipping risks. Every layer has a purpose, ensuring your order arrives safely and ready for action.

The Packaging Process Visualized

Solar Panel Package 1
1

Corner Protection

High-density padding safeguards the most vulnerable points of each panel.

Solar Panel Pallets
2

Palletization & Wooden Crate

Panels are secured on a sturdy pallet and framed within a custom wooden crate for ultimate rigidity.

Solar Panel container loading
3

Locking & Sealing

PET steel straps and PE stretch film create an immovable, weather-shielded unit.

Key Logistics Data at a Glance

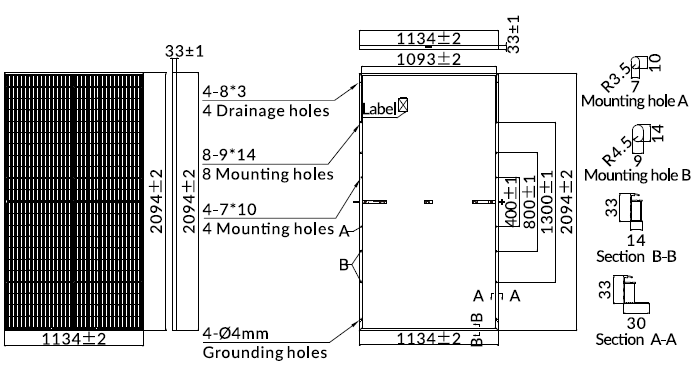

Product Size 2094 x 1134 x 30 mm
Pallets 36 pcs / pallet
40HQ Container Fits 22 pallets efficiently
📦

Packaging Advantages

Our multi-layered packaging system ensures maximum protection during transit. The combination of corner guards, individual boxing, palletization, and secure sealing minimizes the risk of damage, even in long-distance shipping.

Why Our Packaging Stands Out

🛡️ Damage Prevention

Multi-layer protection system reduces breakage to less than 0.1% during transit.

🌧️ Weather Resistance

PE stretch film and sealed edges protect against moisture and environmental factors.

📏 Space Optimization

Efficient pallet design maximizes container space, reducing shipping costs.

About FGET

Future Green Technology is committed to creating a green future.

Rooting ourselves in the new energy industry for the decade, we manufacture high-quality solar panels and batteries and have gained a high reputation from hundreds of customers globally.

We also have over 100 long-term partners around the world. We sell high-quality batteries and solar panels, and also customize solar panel systems and solar power stations for our customers who need them. If you also want to customize a solar panel system, you can submit your daily electricity consumption requirements below, and we will immediately develop a detailed energy solution for you.
