China Spilt Phase Inverter Hybrid Solar Power System Set Lithium Battery Storage Generator for Residential Companies,Manufacturers,Suppliers

Spilt Phase Inverter Hybrid Solar Power System Set Lithium Battery Storage Generator for Residential

Specialized in solar design & sales for wholesale and DIY customers
See our 4.9-Star Google Reviews
Check out our featured Customer Installs

Item NO:FGET 10kW
Voltage: 48V
Max output: 12000W
Max Mppt current: 120A*2
Max Solar input voltage: 500V

Want to know the quantity of solar panels you have to install？

Split Phase Inverter Hybrid Solar Power System Set Lithium Battery Storage Generator for Residential

Item NO: FGET 12kW

Embrace the future of energy with Future Green Technology's 5kW Hybrid Solar System. This cutting-edge system seamlessly integrates solar power with traditional energy sources, providing you with reliable, sustainable, and cost-effective electricity.

Key Features:

SpecificationsSpecificationsSpecifications

High-Efficiency Solar Panels: Harness the power of the sun with our high-efficiency solar panels, designed for optimal energy conversion and long-lasting performance.

Advanced MPPT Controller: Maximize your solar energy harvest with the built-in MPPT controller, ensuring peak efficiency and intelligent power management.

Hybrid Inverter: Seamlessly transitions between solar power and traditional energy sources, ensuring an uninterrupted electricity supply.

Smart Monitoring: Monitor your system's performance in real-time with our user-friendly monitoring app, track energy production, and optimize efficiency.

Scalable Design: Expand your system's capacity with ease by adding more solar panels or batteries as your energy needs grow.

Easy Installation: Our systems are designed for straightforward installation, simplifying the transition to clean energy.

Technical Specifications:

⚡

System Power

12kW

🔋

Battery Capacity

14.4kWh

☀️

Solar Input

11kW

🔌

Output Voltage

110V/220V

Complete System Components

☀️

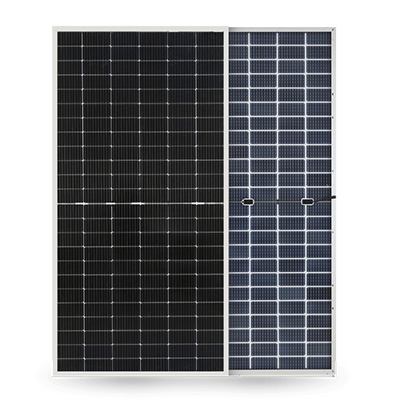

Solar Panel

Type: Half Cell PV Module

Max Power: 580W

Voltage: Vmp: 42.28V; Imp: 13.01A

Size: 2279*1134*30 mm

Warranty: 25 years of power output guarantee

Connection: 10 pcs in series

Total Weight

600 kg

Total Volume

2.4 m³

Quantity

20 pcs

⚡

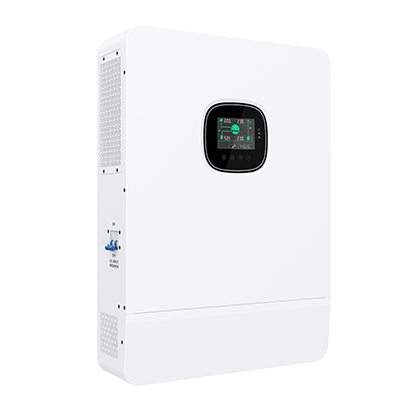

Inverter with MPPT Controller

Type: MPPT Charging Controller 48V 120A*2

Output Capacity: 10000W

Input/Output: DC48V input, AC220V/110V 1-phase output

Frequency: 50/60Hz

Waveform: Pure sine-wave output, off-grid Hybrid type

Protections: Short circuit, overload, surge current, over temperature, over/under voltage, lightning, reverse polarity

Total Weight

25 kg

Total Volume

0.15 m³

Quantity

1 pc

🔋

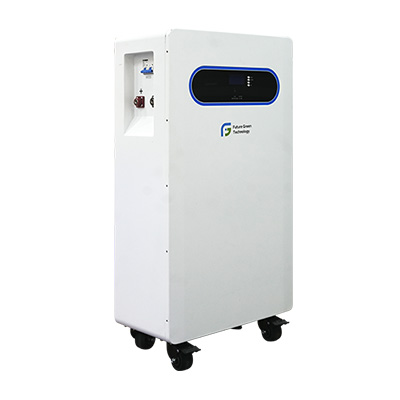

Solar Battery

Type: LiFePO4 Battery

Capacity: 48V/300AH (14.4kWh)

Weight: 125kg

Service Life: 5~8 years

Feature: Parallel function

Total Weight

120 kg

Total Volume

0.3 m³

Quantity

1 pc

High Quality 12V 24V 48V LiFePO4 12.8V 25.6V 51.2V 300AH Lithium Ion Battery Pack for Solar Power System

🏗️

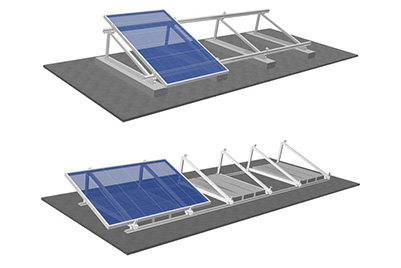

Mounting System

Type: Roof/Ground type mounting rack

Material: Aluminum alloy with complete fittings

Note: Can be customized per request

Weight

260 kg

Volume

0.6 m³

Qty

1 set

🔧

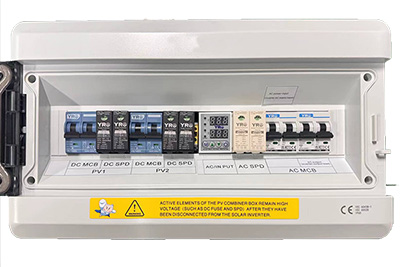

Distribution Box

Components: DC and AC breakers

Protection: Full protection system

Includes: Tools for solar panel installation

Weight

3 kg

Volume

0.01 m³

Qty

1 pc

System Totals

Total Weight

1028 kg

Total Volume

3.48 m³

Total Components

124 pcs

Complete 12kW Hybrid Solar Power System

Why Choose Future Green Technology?

Specialized Expertise: We specialize in solar design and sales for wholesale and DIY customers, offering tailored solutions to meet your unique needs.

Proven Track Record: Our 4.9-star Google reviews speak for themselves - we're committed to providing exceptional products and customer service.

Customer-Centric Approach: We're passionate about helping you achieve your energy goals, offering expert guidance and support throughout your solar journey.

Featured Customer Installs: Check out our featured customer installs to see how our systems are making a difference in homes and businesses worldwide.

Invest in a sustainable future with Future Green Technology's 5kW Hybrid Solar System. Contact us today to learn more and start your clean energy journey!
