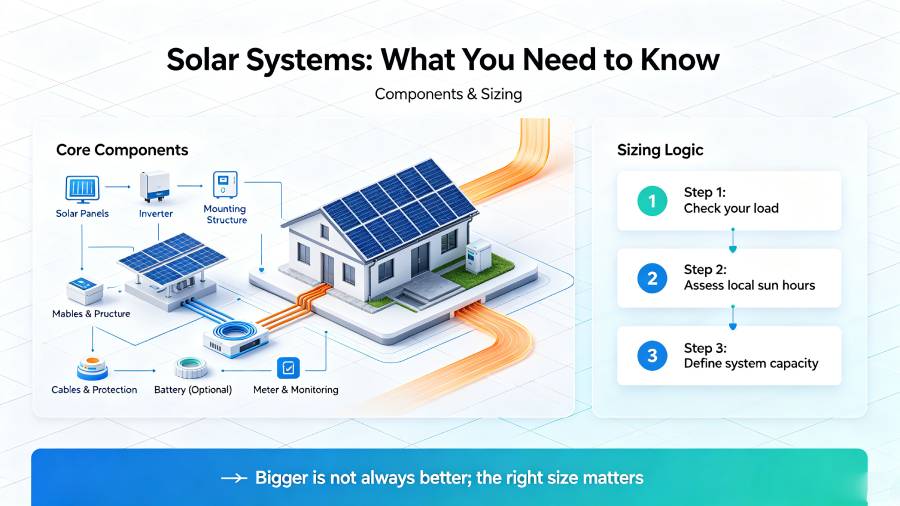

Solar Systems: What You Need to Know (Components & Sizing)

Converts sunlight into Direct Current (DC) electricity. High-efficiency N-Type TOPCon or HJT panels maximize production even under high temperatures and weak light conditions.

Converts DC electricity to Alternating Current (AC) for household or grid use. MPPT algorithms dynamically optimize peak power voltage tracking in real-time.

Stores excess daytime generation for nighttime consumption or emergency backup power. Lithium Iron Phosphate ($\text{LiFePO}_4$) ensures $6000+$ cycles with exceptional safety.

Always use local Peak Sun Hours ($1000\,\text{W/m}^2$ equivalent) rather than total daylight hours. Using total daylight hours will result in severe system under-sizing.

Inductive loads like pumps, AC units, and compressors draw $3\times \sim 5\times$ their rated current at startup. Ensure the inverter's peak surge rating accommodates these startup spikes.

• Account for Temperature Derating: Panel voltage increases in cold weather; calculate cold-weather $V_{oc}$ to protect inverter voltage limits.
• Optimize DC-to-AC Ratio: Design a DC/AC ratio of $1.15 \sim 1.30$ to maximize inverter utilization during morning and late afternoon hours.
• Select High-Cycle $\text{LiFePO}_4$ Storage: Ensure battery BMS supports high charge/discharge rates ($0.5\text{C} \sim 1\text{C}$) for heavy power loads.

• Ignoring Cable $I^2R$ Voltage Losses: Undersized DC or AC wiring leads to energy heat dissipation and nuisance inverter voltage trips.
• Over-discharging Lead-Acid Batteries: Discharging legacy lead-acid below 50% DoD shortens lifespan rapidly compared to $80\%\sim90\%$ DoD $\text{LiFePO}_4$.
• Underestimating Winter Solar Deficits: Failing to plan for reduced seasonal winter irradiation results in winter power outages for off-grid systems.
